Benetech

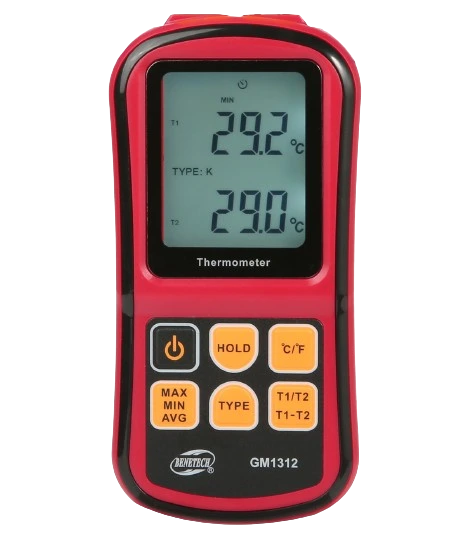

Thermocouple Temperature Meter GM1312
The Benetech GM1312 Thermocouple Digital Temperature Meter is a professional thermocouple thermometer with dual input supporting 7 thermocouple types (J, K, T, E, N, R, and S). Available through authorized distributor Instrument Technology Link in Karachi, Lahore, and Islamabad. This device measures liquid, vapor, and solid surface temperatures with a considerably wider range than mercury or alcohol thermometers. Suitable for high-temperature fields like blast furnaces and industrial cookery, as well as low-temperature measurement for liquefied hydrogen and liquid nitrogen. Features include: dual channel input (T1, T2, T1-T2), dual display with backlight, data hold, MAX/MIN/AVG recording, °C/°F conversion, electrical compensation for improved precision, auto power-off, and low battery indication. Ideal for laboratory research, blast furnace monitoring, cryogenic applications, industrial processing, HVAC, food processing, and chemical plants.
About Benetech GM1312 Thermocouple Digital Temperature Meter
The Benetech GM1312 is a professional thermocouple temperature meter designed for precise temperature measurement across extreme ranges. Trusted by laboratory researchers, metallurgists, HVAC technicians, and quality control managers in Karachi, Lahore, and Islamabad, the GM1312 delivers reliable performance with 7 thermocouple type support and dual input capability.
Thermocouple thermometers are essential for measuring temperatures where traditional thermometers cannot reach. The GM1312's electrical compensation function provides compensation for thermocouple errors, improving overall precision. With dual channel input, you can measure two temperatures simultaneously or calculate the temperature difference (T1-T2).
Why Choose the Benetech GM1312 for Thermocouple Temperature Measurement?
The GM1312 offers 7 thermocouple types support (J, K, T, E, N, R, S), dual channel input for simultaneous measurement, ±0.1%+0.6°C accuracy with electrical compensation, wide measurement ranges from -250°C to 1767°C, dual display with backlight showing T1/T2 combinations, data hold for convenient reading, MAX/MIN/AVG recording for trend analysis, °C/°F conversion, human-centered design for easy operation, auto power-off for battery conservation, and comes with 2 K-type thermocouple probes.
Complete Technical Specifications
Main Unit Specifications
- Input: Dual Channel (T1, T2, T1-T2)
- Resolution: 0.1°C (below 1000°), 1.0°C (above 1000°)
- Accuracy: ±0.1% + 0.6°C
- Display: Dual Display with Backlight showing T1/T2 and combinations
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -10°C ~ 50°C
- Storage Humidity: 20~90%
- Power Supply: 3 × 1.5V AAA Battery
- Dimensions: 72 × 29 × 145.5 mm
- Weight: 159.0g
Supported Thermocouple Types & Ranges
- J-Type: -210°C to 1200°C (-346°F to 2192°F)
- K-Type: -200°C to 1372°C (-328°F to 2501°F)
- T-Type: -250°C to 400°C (-418°F to 752°F)
- E-Type: -150°C to 1000°C (-238°F to 1832°F)
- N-Type: -200°C to 1300°C (-328°F to 2372°F)
- R-Type: 0°C to 1767°C (32°F to 3212°F)
- S-Type: 0°C to 1767°C (32°F to 3212°F)
Included K-Type Thermocouple Probes
- Measuring Range: 0~250°C (300°C in short time)
- Error Allowed: 2.5°C or 0.75% (Class II)
- Heat Response Time: Less than 10 seconds
- Quantity: 2 pieces attached
Key Features
- High Accuracy: ±0.1%+0.6°C with electrical compensation
- Convenient Operation: Human-centered design, easy to use
- °C/°F Switchable: Temperature unit conversion
- Data Hold and MAX/MIN/AVG: Record and review readings
- Dual Display with Backlight: Shows T1/T2 and combinations
- 7 Thermocouple Types: J, K, T, E, N, R, and S support
- Electrical Compensation: Corrects thermocouple errors for improved precision
- Dual Channel Input: Measure two temperatures or difference (T1-T2)
- Auto Power-Off: Battery saving feature
- Low Battery Indication: Alert when replacement needed
Key Benefits for Pakistani Users
- Laboratory Research: Accurate temperature measurement for experiments in Islamabad's research institutions.
- Blast Furnace Monitoring: High-temperature measurement in Karachi's steel and metal industries.
- Cryogenic Applications: Low-temperature measurement for liquefied hydrogen and liquid nitrogen in research and industry.
- Industrial Processing: Monitor temperatures in Lahore's manufacturing facilities.
- HVAC Systems: Verify temperature conditions in commercial and industrial buildings.
- Quality Control: Inspect product temperatures in food processing and chemical plants.
Applications of GM1312 in Pakistan
- Laboratory Research: Scientific experiments, material testing
- Blast Furnaces: High-temperature monitoring in metallurgy
- Cryogenics: Liquefied hydrogen and nitrogen measurement
- Industrial Processing: Manufacturing temperature monitoring
- HVAC: System performance verification
- Food Processing: Temperature control in production
- Chemical Plants: Process temperature monitoring
- Petrochemical: Refinery and processing temperature
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need a thermocouple temperature meter for laboratory research, blast furnace monitoring, cryogenic applications, industrial processing, or HVAC, the Benetech GM1312 offers professional-grade performance with 7 thermocouple types and dual input. Contact us for current pricing and availability in Pakistan.
