Benetech

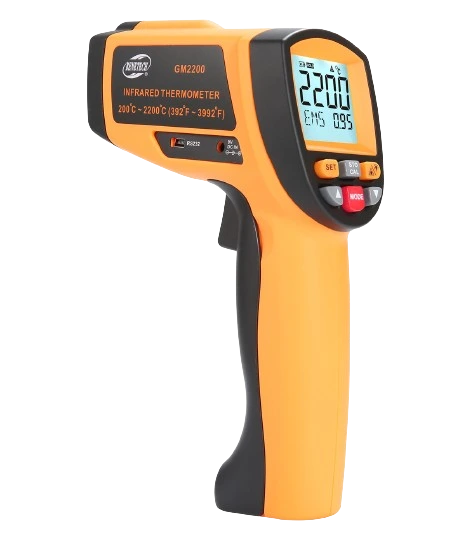

Infrared Temperature Gun GM2200
The Benetech GM2200 Infrared Temperature Gun is a professional non-contact IR thermometer with an ultra-wide -200°C to 2200°C measurement range, 80:1 distance-to-spot ratio, and RS232 data export for PC connectivity. Available through authorized distributor Instrument Technology Link in Karachi, Lahore, and Islamabad. This instrument consists of an optics system, photoelectric sensor, signal amplifier, signal process circuit, and LCD. The optics system collects infrared energy emitted by an object and focuses it onto the sensor. The sensor translates the energy into an electrical signal, which is then processed and displayed as a temperature reading on the LCD. Features include: Max/Min/Diff/Avg display, ℃/℉ conversion, data retention, positioning laser, LCD backlight, measurement data storage/view/clear, high/low temperature alarm settings, automatic shut-down, and RS232 interface. Ideal for industrial maintenance, metallurgy, glass manufacturing, laboratory research, electrical troubleshooting, and HVAC.
About Benetech GM2200 Infrared Temperature Gun
The Benetech GM2200 is a premium non-contact infrared temperature gun designed for professionals who require accurate temperature measurement across extreme ranges. Trusted by maintenance engineers, metallurgists, glass manufacturers, laboratory researchers, and quality control managers in Karachi, Lahore, and Islamabad, the GM2200 delivers reliable performance from -200°C to 2200°C with advanced features.
Infrared temperature guns are essential for diagnosing high-temperature processes, monitoring industrial equipment, and ensuring product quality. The GM2200's 80:1 distance-to-spot ratio allows accurate measurements from a safe distance, while adjustable emissivity (0.10-1.00) ensures precise readings on various surfaces. The RS232 data export function enables easy data logging and analysis for professional applications.
Why Choose the Benetech GM2200 for Industrial Temperature Measurement?
The GM2200 offers ultra-wide -200°C to 2200°C range for extreme high-temperature applications, 80:1 D:S ratio for long-distance measurement, adjustable emissivity 0.10-1.00 for surface compensation, RS232 data export for PC connectivity and data logging, multi-level accuracy (±2°C to ±4°C depending on range), 500 ms response time, data storage/view/clear for record keeping, Max/Min/Diff/Avg for trend analysis, high/low alarm for threshold alerts, laser pointer for precise targeting, backlit LCD for low-light conditions, and auto shut-down for battery conservation.
Complete Technical Specifications
Temperature Measurement
- Temperature Range: -200°C to 2200°C (-328°F to 3992°F)
- Resolution: 0.1°C or 0.1°F
- Repeatability: 1% of reading or 1°C
- Response Time: 500 mSec, 95% response
- Spectral Response: 900-1700 nm
Accuracy Specifications
- 200°C to 450°C (392°F to 842°F): ±2°C or ±2% (whichever is bigger)
- 450°C to 1100°C (842°F to 2012°F): ±3°C or ±3% (whichever is bigger)
- 1100°C to 2200°C (2012°F to 3992°F): ±4°C or ±3% (whichever is bigger)
Distance & Environmental
- Distance to Spot Ratio: 80:1
- Emissivity: 0.10-1.00 adjustable (pre-set 0.95)
- Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
- Relative Humidity: 10-80% RH non-condensing
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F) ≤85% (without battery)
Physical & Power
- Weight: 270g (without battery)
- Dimensions: 141 x 60 x 220 mm
- Power Supply: 9V Alkaline battery or 9V 500mA DC IN
- Battery Life (Alkaline): 10 hrs (laser mode)
- Interface: RS232 for data export
Key Features
- Max / Min / Difference / Average Display: Comprehensive data analysis
- ℃ / ℉ Temperature Unit Conversion: Switchable units
- Data Retention: Hold readings on display
- Positioning Laser: Precise target identification
- LCD Backlight: Clear visibility in dark environments
- Measurement Data Storage / View / Clear: Save and manage readings
- High / Low Temperature Alarm Settings: Configurable threshold alerts
- Automatic Shut-down: Power saving feature
- RS232 Interface: Data export to PC for logging and analysis
- Adjustable Emissivity: Optimized for different surface materials
Key Benefits for Pakistani Users
- Industrial Maintenance: Monitor high-temperature equipment in Karachi's manufacturing plants for predictive maintenance.
- Metallurgy: Measure molten metal temperatures in Lahore's steel and metal industries.
- Glass Manufacturing: Monitor furnace and glass processing temperatures in industrial facilities.
- Laboratory Research: Conduct high-temperature experiments and material testing in Islamabad's research institutions.
- Electrical Troubleshooting: Detect hot spots in high-voltage electrical panels and substations.
- Quality Control: Inspect product temperatures in high-temperature manufacturing processes.
Applications of GM2200 in Pakistan
- Industrial Maintenance: Predictive maintenance, machinery monitoring
- Metallurgy: Molten metal temperature measurement, steel production
- Glass Manufacturing: Furnace monitoring, glass processing temperature
- Laboratories: High-temperature research, material testing
- Electrical Systems: High-voltage panel inspection, substation monitoring
- HVAC: System performance verification, combustion monitoring
- Ceramics & Refractory: Kiln temperature monitoring
- Automotive: Engine and exhaust diagnostics
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need an infrared temperature gun for industrial maintenance, metallurgy, glass manufacturing, laboratory research, or electrical troubleshooting, the Benetech GM2200 offers professional-grade performance with ultra-wide range and RS232 data export. Contact us for current pricing and availability in Pakistan.
