Benetech
Pressura Mano Meter GM 510

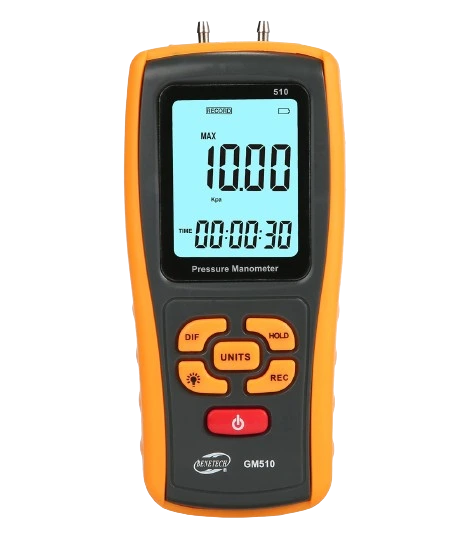

The Benetech GM510 Digital Pressure Manometer is a professional pressure measurement instrument supporting 11 selectable pressure units with USB PC connectivity for data export. Available through authorized distributor Instrument Technology Link in Karachi, Lahore, and Islamabad. Features include: 11 pressure units (bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O), large LCD display, data hold, differential mode, record mode, USB port for PC data transfer, reset and data adjustment, low battery indication, and auto power-off. Ideal for HVAC systems, industrial pressure testing, gas pressure measurement, compressed air systems, water pressure testing, and laboratory applications.
About Benetech GM510 Digital Pressure Manometer
The Benetech GM510 is a professional digital pressure manometer designed for precise pressure measurement across Pakistan. Trusted by HVAC technicians, industrial maintenance engineers, gas service professionals, and laboratory researchers in Karachi, Lahore, and Islamabad, this versatile instrument delivers accurate pressure readings with multi-unit support.
Pressure measurement is critical for HVAC system optimization, gas line testing, compressed air system monitoring, and industrial process control. The GM510 supports 11 different pressure units, making it suitable for diverse applications across multiple industries.
Why Choose the Benetech GM510 for Pressure Measurement?
The GM510 offers 11 selectable pressure units for maximum versatility, large LCD display for easy reading, differential mode for pressure difference measurement, record mode for data logging, USB PC connectivity for data export and analysis, data hold for freezing readings, reset and data adjustment for calibration, auto power-off to conserve battery, and low battery indication.
11 Selectable Pressure Units
- bar - 0.100 bar (max 0.500 bar) | Resolution: 0.001
- mbar - 100.0 mbar (max 500.0 mbar) | Resolution: 0.1
- kPa - 10.00 kPa (max 50 kPa) | Resolution: 0.01
- kgf/cm² - 0.101 kgf/cm² (max 0.509 kgf/cm²) | Resolution: 0.001
- mmHg - 75.0 mmHg (max 375.0 mmHg) | Resolution: 0.1
- cmH2O - 101.9 cmH2O (max 509.5 cmH2O) | Resolution: 0.1
- Ozf/in² - 23.20 Ozf/in² (max 116.00 Ozf/in²) | Resolution: 0.01
- psi - 1.450 psi (max 7.251 psi) | Resolution: 0.001
- inHg - 2.95 inHg (max 14.76 inHg) | Resolution: 0.01
- inH2O - 40.1 inH2O (max 200.5 inH2O) | Resolution: 0.1
- ftH2O - 3.34 ftH2O (max 16.70 ftH2O) | Resolution: 0.01
Key Benefits for Pakistani Users
- HVAC Systems: Measure air and gas pressure in heating, ventilation, and air conditioning systems in Karachi's commercial buildings.
- Industrial Pressure Testing: Monitor pressure in manufacturing processes and industrial equipment in Lahore's factories.
- Gas Pressure Measurement: Test natural gas and LPG pressure in Islamabad's residential and commercial gas lines.
- Compressed Air Systems: Verify pressure in compressed air systems for industrial applications.
- Water Pressure Testing: Measure water pressure in plumbing systems and irrigation networks.
- Laboratory Applications: Precise pressure measurement for research and quality control laboratories.
Complete Technical Specifications
Pressure Measurement Ranges by Unit
- bar: 0.100 bar (Max 0.500 bar) | Resolution: 0.001
- mbar: 100.0 mbar (Max 500.0 mbar) | Resolution: 0.1
- kPa: 10.00 kPa (Max 50 kPa) | Resolution: 0.01
- kgf/cm²: 0.101 kgf/cm² (Max 0.509 kgf/cm²) | Resolution: 0.001
- mmHg: 75.0 mmHg (Max 375.0 mmHg) | Resolution: 0.1
- cmH2O: 101.9 cmH2O (Max 509.5 cmH2O) | Resolution: 0.1
- Ozf/in²: 23.20 Ozf/in² (Max 116.00 Ozf/in²) | Resolution: 0.01
- psi: 1.450 psi (Max 7.251 psi) | Resolution: 0.001
- inHg: 2.95 inHg (Max 14.76 inHg) | Resolution: 0.01
- inH2O: 40.1 inH2O (Max 200.5 inH2O) | Resolution: 0.1
- ftH2O: 3.34 ftH2O (Max 16.70 ftH2O) | Resolution: 0.01
Features
- Large LCD Display: Clear easy-to-read measurements
- Data Hold: Freeze readings on display
- Differential Mode: Measure pressure difference between two points
- Record Mode: Log measurement data for later review
- USB Port: Connect to PC for data export and analysis
- Reset and Data Adjustment: Calibration and zero adjustment
- Low Battery Indication: Alert when battery needs replacement
- Auto Power Off: Conserves battery life
Applications of GM510 in Pakistan
The GM510 is essential for:
- HVAC Systems: Air duct pressure, filter pressure drop, fan static pressure
- Gas Pressure Testing: Natural gas lines, LPG systems, gas appliance testing
- Compressed Air Systems: Compressor output, line pressure, leak detection
- Water Pressure Testing: Plumbing systems, irrigation networks, pump systems
- Industrial Processes: Manufacturing pressure monitoring, quality control
- Laboratory Research: Scientific experiments, calibration, testing
- Medical Equipment: Pressure testing for medical gas systems
- Environmental Monitoring: Atmospheric pressure measurement
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need a pressure manometer for HVAC testing, industrial pressure monitoring, gas line verification, or laboratory research, the Benetech GM510 offers professional features with 11-unit selection and USB data logging. Contact us for current pricing and availability in Pakistan.
