Benetech GM1020 Digital Lux Meter in Pakistan | Light Intensity Meter 0-200,000 Lux with Data Logging & PC Software | Authorized Distributor Karachi, Lahore & Islamabad

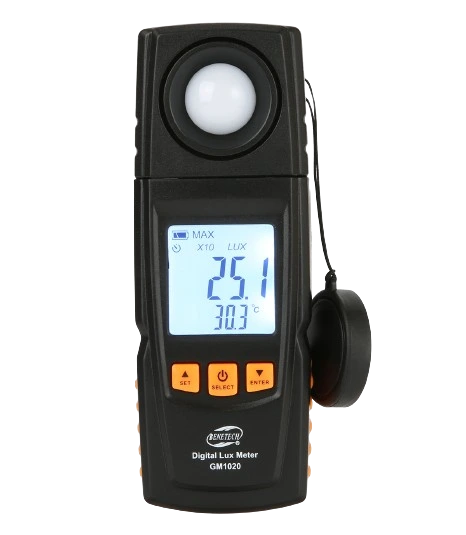

About Benetech GM1020 Digital Lux Meter

The Benetech GM1020 is an advanced professional digital lux meter designed for precise light intensity measurement across Pakistan. Trusted by sports facility managers, lighting engineers, researchers, and quality control professionals in Karachi, Lahore, and Islamabad, this sophisticated instrument delivers accurate illuminance readings with advanced data logging capabilities.

Light intensity measurement is essential for ensuring proper lighting standards in sports facilities, industrial environments, research laboratories, and commercial buildings. The GM1020 features a wide measurement range of 0 to 200,000 Lux with four automatic ranges, making it suitable for everything from low-light indoor environments to bright outdoor stadium lighting.

Why Choose the Benetech GM1020 for Light Intensity Measurement?

The GM1020 offers wide measurement range (0-200,000 Lux) with 4 auto-ranges for optimal accuracy, 1,900 automatic data storage with PC analysis software (LuxLAB) for comprehensive reporting, rotatable sensor for flexible positioning, illuminance difference measurement, integrating illuminance, average integrating illuminance, MAX/MIN recording, temperature measurement (0-40°C), backlit LCD, and USB connectivity.

Key Benefits for Pakistani Users

• Cricket Grounds & Stadiums: Measure and log light intensity on playing fields in Karachi, Lahore, and Islamabad to ensure compliance with PCB and international broadcast standards for day-night matches.
• Sports Facilities: Verify and document lighting levels for cricket, football, hockey, and other sports venues across Pakistan with data logging and PC reporting.
• Industrial Lighting Verification: Check and record workplace illumination levels in manufacturing facilities for worker safety and productivity compliance.
• Building Inspection: Assess and document lighting quality in commercial buildings, offices, and educational institutions.
• Agriculture Research: Log light intensity measurements for greenhouse and indoor farming applications over time.
• Electro-Optical Research: Precise light measurement with data logging for laboratory and research environments.

Complete Technical Specifications

Illuminance Measurement

• Total Measuring Range: 0 - 200,000 Lux (4 auto-ranges)
• ×1 Range: 0 - 199.9 Lux
• ×10 Range: 200 - 1,999.9 Lux
• ×100 Range: 2,000 - 19,999.9 Lux
• ×1000 Range: 20,000 - 200,000 Lux
• Illuminance Accuracy: ±3%rdg (below 10,000 Lux), ±4%rdg (above 10,000 Lux)
• Photoelectric Element: Silicon diode

Temperature Measurement

• Temperature Range: 0°C to 40°C (32°F to 104°F)
• Temperature Accuracy: ±1.0°C / ±1.8°F
• Thermal Probe: NTC thermistor

Measurement Functions

• Illuminance difference - Compare current reading with reference value
• Integrating illuminance - Total light over time (lux·hour)
• Average integrating illuminance - Average light level over time
• MAX/MIN recording - Track maximum and minimum values
• Unit combinations: Lux/℃, Lux/℉, FC/℃, FC/℉

Data Storage

• Automatic Storage: Up to 1,900 groups (configurable via LuxLAB software)
• Manual Storage: Up to 60 groups
• PC Connectivity: USB with LuxLAB analysis software
• Storage Cycle: Adjustable via software

General Specifications

• LCD Display Update: 2 times per second
• Rotatable Sensor: Yes (for flexible positioning)
• Backlight: Yes
• Operating Temperature/Humidity: 0-40°C, 10-90% RH
• Storage Temperature/Humidity: -20-50°C, 10-90% RH
• Power Supply: 2 × AAA batteries
• Battery Life: 10 hours (continuous operation with USB connection)
• Auto Shutdown: Adjustable via LuxLAB software

GM1020 vs GM1010 Comparison

• GM1020 (Advanced): 0-200,000 Lux range, 1,900 data storage, PC software (LuxLAB), illuminance difference, integrating illuminance, rotatable sensor, temperature measurement
• GM1010 (Standard): 0-200,000 Lux range, MAX/MIN recording, backlit LCD, auto power-off, unit selection

Applications of GM1020 in Pakistan

The GM1020 is essential for:

• Cricket Grounds & Stadiums: Light intensity verification and logging for day-night matches and broadcast standards
• Sports Facilities: Lighting compliance documentation for cricket, football, hockey, tennis, and other sports
• Industrial Lighting: Workplace illumination verification and recording for safety compliance
• Building Inspection: Commercial and residential lighting quality assessment with data logging
• Agriculture: Greenhouse light measurement and logging for optimal plant growth
• Electro-Optical Research: Laboratory light source characterization with data export
• Teaching & Education: Physics and optics demonstrations with data recording
• Metallurgy: Quality control for lighting in inspection areas

LuxLAB PC Software

The GM1020 includes LuxLAB computer-based analysis software, allowing users to:

• Set automatic data storage cycles
• Configure auto shutdown timer
• Start/stop data recording remotely
• Analyze and export illuminance data for reporting
• Monitor real-time measurements on PC

Authorized Benetech Distributor in Pakistan

Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.

Whether you need a lux meter for cricket ground lighting verification, sports facility compliance, industrial lighting assessment, or research applications, the Benetech GM1020 offers professional features with 0-200,000 Lux range and advanced data logging capabilities. Contact us for current pricing and availability in Pakistan.
