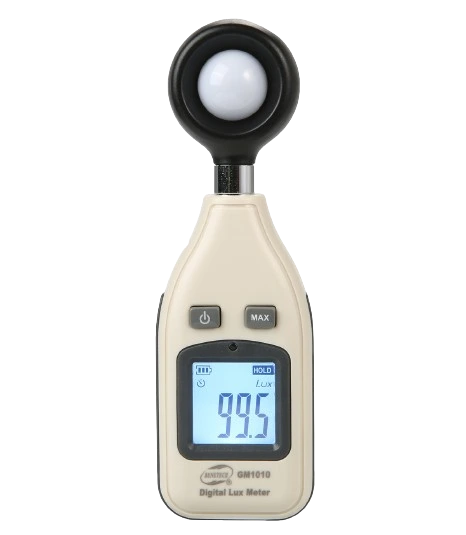

About Benetech GM1010 Digital Lux Meter
The Benetech GM1010 is a professional digital lux meter designed for precise light intensity measurement across Pakistan. Trusted by sports facility managers, lighting engineers, researchers, and quality control professionals in Karachi, Lahore, and Islamabad, this instrument delivers accurate illuminance readings for critical applications.
Light intensity measurement is essential for ensuring proper lighting standards in sports facilities, industrial environments, research laboratories, and commercial buildings. The GM1010 features a wide measurement range of 0 to 200,000 Lux, making it suitable for everything from low-light indoor environments to bright outdoor stadium lighting.
Why Choose the Benetech GM1010 for Light Intensity Measurement?
The GM1010 offers wide measurement range (0-200,000 Lux) for versatile applications, high accuracy (3%) for reliable readings, MAX/MIN recording for tracking light variations, backlit LCD for low-light conditions, unit selection (Lux/Fc) for convenience, silicon diode photometric sensor for accurate spectral response, and auto power-off after 5 minutes to conserve battery life.
Key Benefits for Pakistani Users
- Cricket Grounds & Stadiums: Measure light intensity on playing fields in Karachi, Lahore, and Islamabad to ensure compliance with PCB and international broadcast standards for day-night matches.
- Sports Facilities: Verify lighting levels for cricket, football, hockey, and other sports venues across Pakistan.
- Industrial Lighting Verification: Check workplace illumination levels in manufacturing facilities for worker safety and productivity.
- Building Inspection: Assess lighting quality in commercial buildings, offices, and educational institutions.
- Agriculture Research: Measure light intensity for greenhouse and indoor farming applications.
- Electro-Optical Research: Precise light measurement for laboratory and research environments.
Complete Technical Specifications
- Measurement Range: 0 - 200,000 Lux / 0 - 18,500 Fc
- Accuracy: ±3%rdg±0.5%f.s. (for readings below 10,000 Lux), ±4%rdg±10dgts (for readings above 10,000 Lux)
- Digital Update Rate: 2 times per second
- Photometric Sensor: Silicon diode with spectral response matching CIE photopic curve
- Functions: Unit selection (Lux/Fc), MAX/MIN measurement, Backlight, Automatic measurement
- Auto Power Off: After 5 minutes of inactivity
- Low Battery Indication: Yes
- Battery Life: Approximately 18 hours continuous operation
- Power Supply: 9V battery
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Humidity: 10% RH to 90% RH
- Storage Temperature: -20°C to 50°C (-4°F to 122°F)
- Storage Humidity: 10% RH to 90% RH
- Dimensions: 166 × 52.5 × 35.5 mm
Understanding Lux Measurement
Lux (lx) is the SI unit of illuminance, measuring the amount of light falling on a surface. One lux equals one lumen per square meter. The GM1010 also measures in Foot-candles (Fc), where 1 Fc = 10.764 Lux, commonly used in some regions for lighting standards.
Typical Lux Values for Reference:
- Cricket Grounds (International Matches): 1,500 - 2,500 Lux for broadcast
- Cricket Grounds (Domestic): 800 - 1,500 Lux
- Office Lighting: 300 - 500 Lux
- Classroom Lighting: 300 - 500 Lux
- Warehouse/Factory: 100 - 300 Lux
- Full Daylight: 10,000 - 25,000 Lux
- Direct Sunlight: 32,000 - 130,000 Lux
Applications of GM1010 in Pakistan
The GM1010 is essential for:
- Cricket Grounds & Stadiums: Light intensity verification for day-night matches and broadcast standards
- Sports Facilities: Lighting compliance for cricket, football, hockey, tennis, and other sports
- Industrial Lighting: Workplace illumination verification for safety and productivity
- Building Inspection: Commercial and residential lighting quality assessment
- Agriculture: Greenhouse light measurement for optimal plant growth
- Electro-Optical Research: Laboratory light source characterization
- Teaching & Education: Physics and optics demonstrations
- Metallurgy: Quality control for lighting in inspection areas
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need a lux meter for cricket ground lighting verification, sports facility compliance, industrial lighting assessment, or research applications, the Benetech GM1010 offers professional features with 0-200,000 Lux range. Contact us for current pricing and availability in Pakistan.
