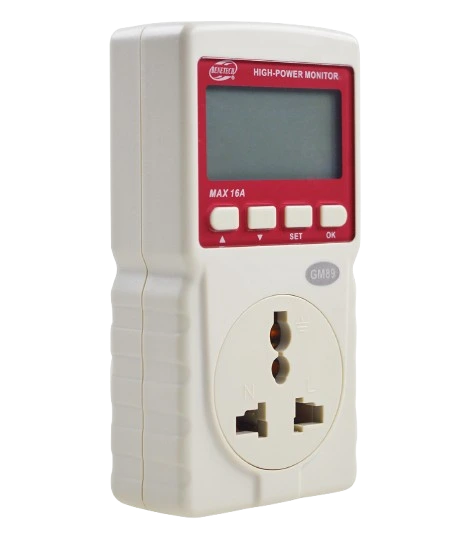

About Benetech GM89 Micro Power Meter
The Benetech GM89 is a professional 16A micro power meter designed for comprehensive electrical equipment monitoring across Pakistan. Trusted by homeowners, facility managers, energy auditors, and appliance technicians in Karachi, Lahore, and Islamabad, this energy monitor delivers accurate power consumption data for effective energy management.
With rising electricity costs in Pakistan, understanding your appliance power consumption is essential for reducing energy bills. The GM89 allows you to measure exactly how much power each appliance uses, identify energy-hungry devices, and track your electricity usage over time.
Why Choose the Benetech GM89 for Power Monitoring?
The GM89 offers 16A capacity (3520W max) suitable for high-power appliances, dedicated energy metering chip for accurate measurements, 1.0 accuracy class for reliable data, comprehensive monitoring parameters (power, voltage, current, power factor, frequency), total consumption tracking (kWh and time), CO2 emission calculation for environmental impact awareness, load alarm threshold for overload protection, and adjustable backlight for easy reading.
Key Benefits for Pakistani Users
- Home Energy Saving: Identify energy-hungry appliances in Karachi's residential homes and reduce electricity bills by optimizing usage patterns.
- Office Power Monitoring: Track power consumption of office equipment in Islamabad's commercial buildings to identify energy-saving opportunities.
- Appliance Efficiency Testing: Test the actual power consumption of AC units, refrigerators, water heaters, and other appliances in Lahore's homes and businesses.
- CO2 Footprint Tracking: Calculate carbon dioxide emissions from electricity usage for environmental awareness and reporting.
- Load Monitoring: Set alarm thresholds to prevent overload conditions on electrical circuits.
- Rental Property Management: Track electricity usage of tenants' appliances for fair billing.
Complete Technical Specifications
- Rated Voltage: 220V 50Hz (Pakistan standard)
- Measurable Voltage Range: 180.0V - 260.0V
- Rated Current: 16A
- Measurable Current Range: 0.00A - 16.00A
- Maximum Power: 3520W
- Measurable Power Range: 0.1W - 3520W
- Power Factor Range: 0.001 - 1.000
- Electricity Measurement Range: 0.00 - 9999 kWh
- CO2 Emission Range: 0.00 - 9999 kg
- Accuracy Class: 1.0 level
- Constant: 6400 imp/kWh
- Power Consumption: <1W (very low)
- Backlight: On/Off settable
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -20°C to 60°C
- Product Dimensions: 319 × 60 × 42 mm
- Wire Length: 150 mm
- Wire Diameter: 10.5 mm
- Weight: 129.6g
Key Features
- Monitor Active Power Value: Real-time power consumption display in watts
- Voltage/Current/Frequency: Comprehensive electrical parameter monitoring
- Total Consumption Time: Records total operating time of connected appliances
- Total Electricity Consumption: Tracks cumulative kWh usage (0-9999 kWh)
- CO2 Emissions Calculation: Calculates carbon footprint from electricity usage
- Power Factor Detection: Measures efficiency of power usage
- Load Alarm Threshold: User-configurable alarm for overload protection
Typical Appliances That Can Be Monitored (16A / 3520W max)
- Air Conditioners: Window and split AC units (1-2 tons)
- Water Heaters: Geysers and instant water heaters
- Electric Ovens & Cooktops: Kitchen cooking appliances
- Washing Machines & Dryers: Laundry appliances
- Refrigerators: Large refrigerators and freezers
- Microwave Ovens: High-power microwave appliances
- Iron & Steamers: Clothing care appliances
- Power Tools: High-power workshop equipment
- Water Pumps: Home and garden water pumps
- Space Heaters: Portable electric heaters
How to Use the GM89 Power Meter
- Plug the GM89 into a wall socket
- Plug your appliance into the GM89's outlet
- Read real-time power consumption on the LCD display
- Set load alarm threshold if needed (for overload protection)
- Monitor cumulative consumption over time
- Track CO2 emissions from electricity usage
- Adjust backlight on/off as needed
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need a power meter for home energy saving, office power monitoring, appliance efficiency testing, or CO2 footprint tracking, the Benetech GM89 offers professional features with 16A capacity and comprehensive measurement capabilities. Contact us for current pricing and availability in Pakistan.
