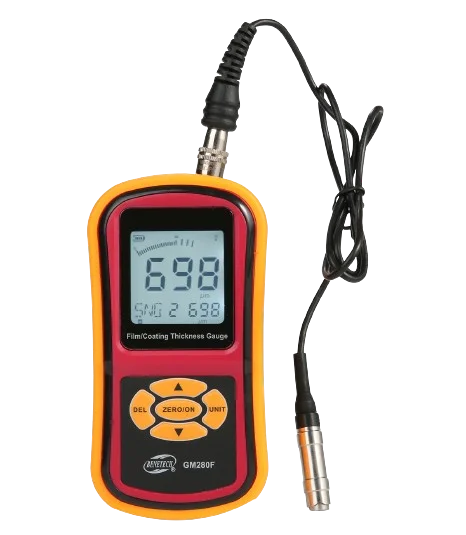

About Benetech GM280F Coating Thickness Gauge
The Benetech GM280F is a professional magnetic coating thickness gauge designed for measuring non-magnetic coatings on ferromagnetic substrates. Trusted by quality control professionals, automotive painters, powder coating specialists, and manufacturing engineers across Pakistan, this instrument delivers accurate and repeatable measurements in Karachi, Lahore, and Islamabad.
Coating thickness measurement is essential for quality assurance in manufacturing, automotive painting, powder coating, and industrial finishing. The GM280F uses magnetic thickness measurement method to quickly and precisely measure paint, electrodeposition, and other non-magnetic coatings on iron and steel substrates.
Why Choose the Benetech GM280F for Coating Thickness Measurement?
The GM280F offers high sensitivity sensor for precise measurements, multiple calibration methods (zero-point, two-point, and basic), data storage with statistical analysis (max/min/average/standard deviation), backlit LCD for visibility, and metric/imperial unit switching (µm/mils).
Key Benefits for Pakistani Industries
- Manufacturing Quality Control: Verify coating thickness on metal products in Karachi's industrial zone to meet quality standards.
- Automotive Painting: Measure paint thickness on vehicles and auto parts in Lahore's automotive industry.
- Powder Coating: Ensure consistent powder coating application in Islamabad's metal finishing shops.
- Industrial Maintenance: Inspect protective coatings on pipelines, storage tanks, and structural steel.
- Commercial Inspection: Verify coating quality for third-party inspection services.
- Marine Industry: Measure anti-corrosion coatings on ships and marine equipment.
Complete Technical Specifications
- Measurement Range: 0 - 2000µm
- Display: 3 1/2 digit LCD with backlight
- Measurement Method: Magnetic thickness measurement
- Substrate Type: Ferromagnetic (iron, steel)
- Coating Type: Non-magnetic coatings (paint, electrodeposition, powder coating)
- Calibration Methods: Zero-point, Two-point, Basic
- Measurement Modes: Single, Continuous, Compensation
- Data Functions: Save, Review, Delete
- Statistical Analysis: Maximum, Minimum, Average, Standard deviation, Measurement count
- Unit Switch: µm (micrometers) / mils (thousandths of an inch)
- Buzzer Alert: Yes
- Low Battery Indication: Yes (2.8V ±0.2V)
- Auto Power Off: After 1 minute of inactivity
- LCD Backlight Duration: 7 seconds
- Power Supply: 3 × 1.5V AAA alkaline batteries
- Battery Life: Approximately 20 hours continuous
- Operation Current: ~25mA
- Standby Current: ≤2uA
- Operation Temperature: 0°C to 40°C
- Operation Humidity: 10% to 95% RH
- Dimensions: 72 × 35 × 145 mm
- Weight: 246.1g (without batteries)
Applications of GM280F in Pakistan
The GM280F is essential for:
- Manufacturing Quality Control: Ensuring coating thickness meets specifications on metal components
- Automotive Paint Inspection: Measuring paint thickness on car bodies and auto parts
- Powder Coating Verification: Checking powder coating application consistency
- Industrial Equipment Coating: Inspecting protective coatings on machinery and equipment
- Pipeline Coating Inspection: Measuring anti-corrosion coatings on pipelines
- Structural Steel Coating: Verifying paint thickness on building structures
- Third-Party Inspection: Independent coating quality verification
Authorized Benetech Distributor in Pakistan
Instrument Technology Link is an authorized distributor of Benetech test instruments in Pakistan. With offices in Karachi, Lahore, and Islamabad, we provide genuine products, calibration support, and after-sales technical service. We deliver nationwide to all major cities including Faisalabad, Rawalpindi, Multan, Peshawar, Quetta, and Hyderabad.
Whether you need a coating thickness gauge for manufacturing quality control, automotive painting, powder coating inspection, or industrial maintenance, the Benetech GM280F offers professional features with data storage and statistical analysis. Contact us for current pricing and availability in Pakistan.
